Quaymark Systems
Move bulk cargo from ship to silo without stopping
Silos, conveyors, and ship loaders for grain, feed, and cement terminals. We design, build, and commission the full line.
01 · Products
Terminal equipment
01

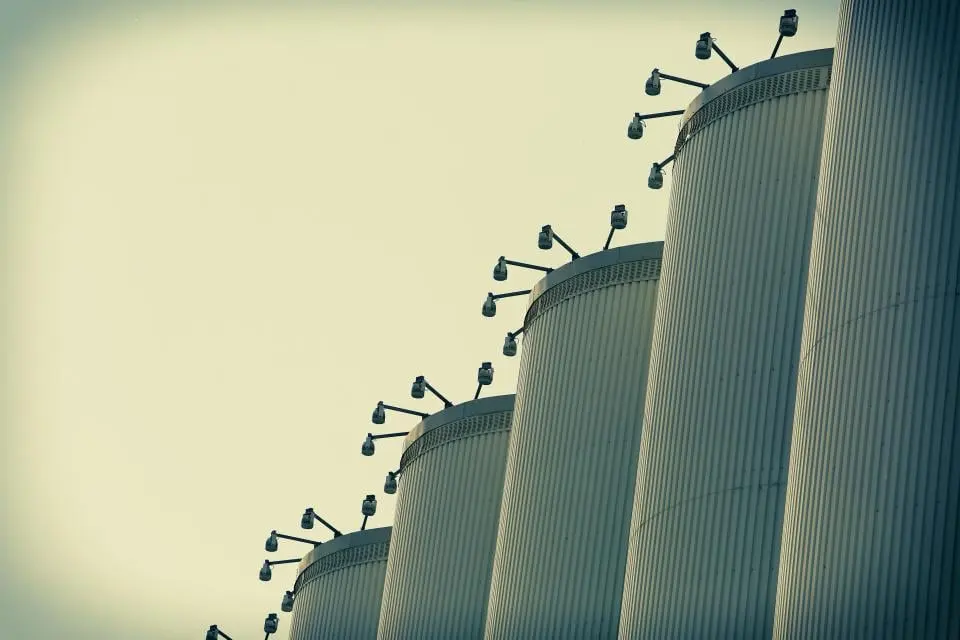

QS-B steel silo
Bolted galvanized silo for grain, feed, and cement storage.
- 500–12,000 m³
- Ø 6–32 m
- Galvanized steel
02

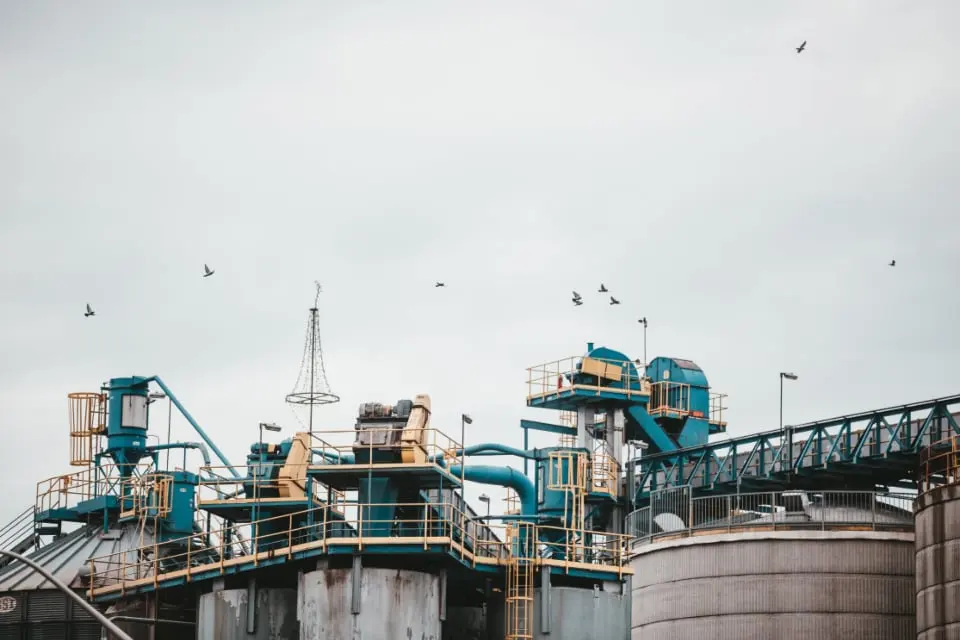

QS-T conveyor and bucket elevator
Enclosed galleries that link the quay, silos, and truck bays.
- Up to 1,500 t/h
- Belt width 1,400 mm
- Dust-sealed covers
03
QS-L ship loader
Rail-mounted loader with a telescopic chute for vessels up to 80,000 DWT.
- Up to 2,000 t/h
- Outreach 28 m
04
QS-C terminal control
One screen for routing, silo levels, and interlocks.
- Level sensors per silo
- Remote access
Key figures
20 years on the quay
64
terminals built since 2004
19
countries
1,500
highest conveyor rating
24/7
remote support line
02 · Specifications
Equipment at a glance
| Equipment | Capacity | Size | Drive |
|---|---|---|---|
| QS-B silo | 500–12,000 m³ | Ø 6–32 m | — |
| QS-T conveyor | 300–1,500 t/h | Belt 800–1,400 mm | Up to 250 kW |
| QS-T bucket elevator | 100–800 t/h | Height to 60 m | Up to 160 kW |
| QS-L ship loader | 800–2,000 t/h | Outreach 28 m | Up to 400 kW |
03 · Use cases
Recent projects
Grain export terminal
Eight QS-B silos and a 1,200 t/h conveyor line loading Panamax vessels in under 40 hours.
Cement import terminal
A sealed unloading line that moves 600 t/h from ship to silo with no open transfer points.
04 · FAQ
What terminal operators ask
Do you handle civil works?
We supply foundation drawings and loads. A local contractor pours the concrete, and our engineers check it before steel goes up.
Can you connect to our existing silos?
Yes. We survey the site, then design transfer points and controls that fit the equipment you already run.
How long does a project take?
A silo block with conveyors usually takes 9 to 14 months from contract to first cargo.
