1.Component lines
01

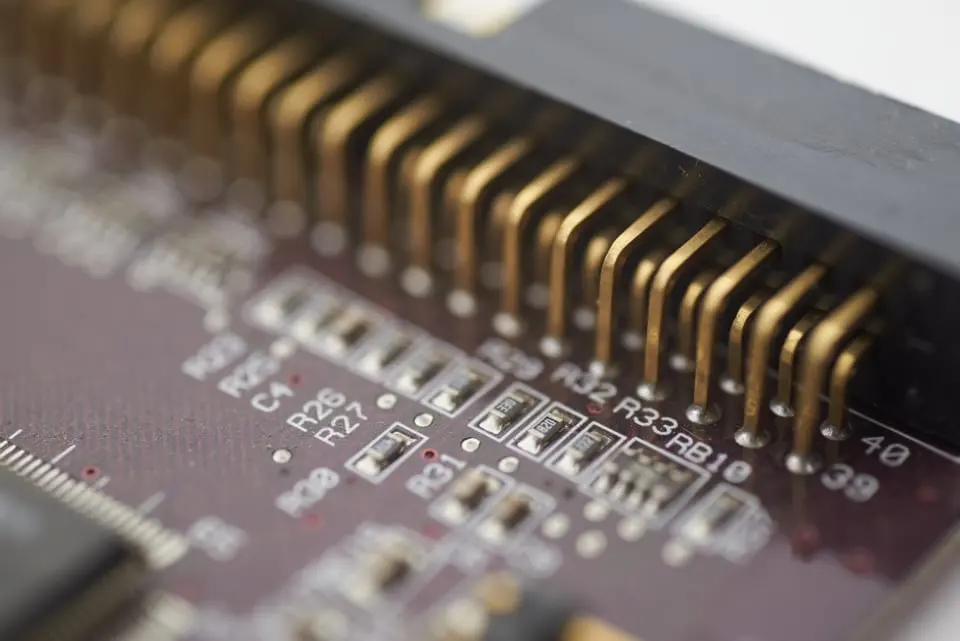

CV-H254 pin header
2.54 mm pitch header for board-to-board and cable links.
- 2–40 pins
- 3 A per contact
- −40 to 105 °C
02
CH-30 pin-fin heatsink
Anodized aluminum pin-fin heatsink for regulators and processors.
- 30 × 30 × 10 mm
- Rth 6.5 °C/W
- Black · violet anodize
03
CR0603 chip resistor
Thick-film chip resistor for general signal and power paths.
- 0603 · 1/10 W
- ±1%
- 1 Ω–10 MΩ
04
CC1005 MLCC
Multilayer ceramic capacitor for decoupling and filtering.
- 1005 (0402)
- X7R · 16 V
- 100 pF–1 µF
Production at a glance
1.8
chip parts shipped per year
6,200
part numbers in stock
5
sample lead time
24
countries with distributors
2.Selection table
| Part | Type | Rating | Size | Temp. range |
|---|---|---|---|---|
| CV-H254 | Pin header | 3 A / 250 V | 2.54 mm pitch | −40–105 °C |
| CR0603 | Chip resistor | 1/10 W · ±1% | 1.6 × 0.8 mm | −55–155 °C |
| CC1005 | MLCC X7R | 16 V · up to 1 µF | 1.0 × 0.5 mm | −55–125 °C |
| CH-30 | Heatsink | 6.5 °C/W | 30 × 30 × 10 mm | — |
3.Designed in
Smart meters
A metering maker moved its board-to-board links to CV-H254 headers and cut connector part numbers from nine to three.
Motor drives
A drive maker fits CH-30 heatsinks on gate-driver regulators and uses CR0603 resistors across its control boards.
4.Engineering questions
Can I buy reels in small quantities?
Yes. Cut tape starts at 100 pieces, and full reels ship from stock for most chip parts.
Do you provide 3D models?
Every connector and heatsink has STEP files and footprint libraries on its datasheet page.
How are lots marked?
Each reel label carries the lot number and date code, so returns and audits trace back to the production batch.
