01 / Products
Equipment range
Product 01

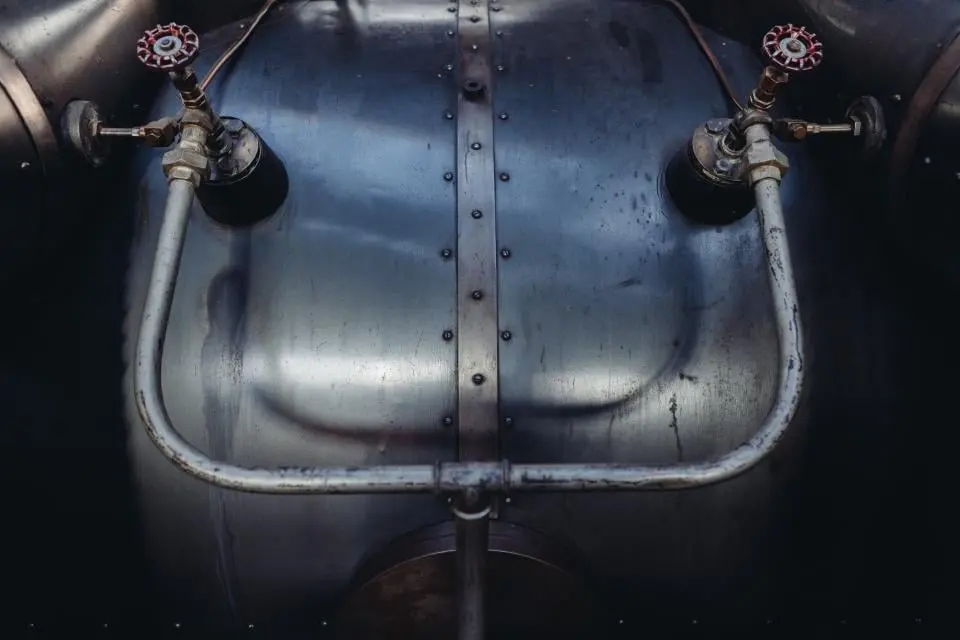

AR-2000 air receiver
2,000-liter storage tank that steadies pressure downstream of the compressor.
- 2,000 L
- Max 13 bar
- Welded steel
Product 02

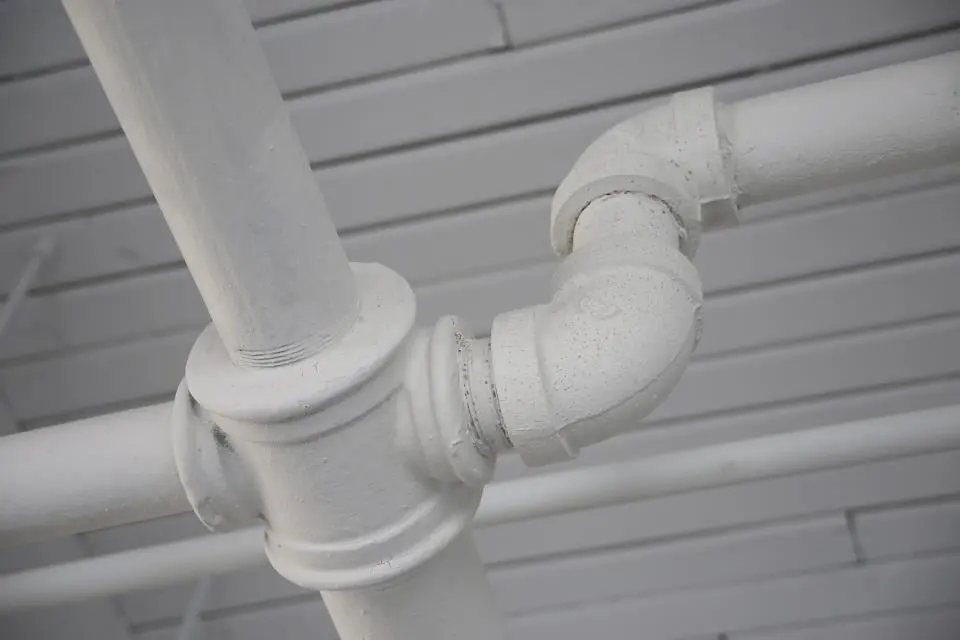

QP compressed-air piping
Painted steel pipe system assembled with standard fittings.
- Pipe 20–100 mm
- Max 16 bar
Product 03
OSC-37 rotary screw compressor
Our core model, with an inverter drive that follows air demand.
- 37 kW
- 6.4 m³/min
- 69 dB(A)
Product 04
OCP-80 centrifugal pump
Stainless pump for wash-down and cooling water lines.
- 80 m³/h
- Head 45 m
- 316 stainless impeller
Key figures
Track record
6,800+
compressors installed since 1992
31
countries with service partners
24
on-site response target
02 / Specifications
Compressor data
| Model | Power | Free air delivery | Max pressure | Noise |
|---|---|---|---|---|
| OSC-15 | 15 kW | 2.5 m³/min | 10 bar | 66 dB(A) |
| OSC-37 | 37 kW | 6.4 m³/min | 10 bar | 69 dB(A) |
| OSC-90 | 90 kW | 16.2 m³/min | 13 bar | 73 dB(A) |
| OSC-160 | 160 kW | 28.5 m³/min | 13 bar | 76 dB(A) |
03 / Use cases
Field installations
Injection molding plant
A molding plant replaced four piston compressors with two OSC-37 units and a 2,000 L receiver, cutting compressed-air power use by 28%.
Frozen food plant
A frozen food plant runs OCP-80 pumps on its wash-down lines in three shifts, with one planned stop a year.
04 / FAQ
Common questions
01Can you size the system for us?
Yes. We log your air demand for seven days and propose compressor, receiver, and pipe sizes from that data.
02What does a service contract cover?
Scheduled maintenance, filter and oil changes, remote monitoring, and a 24-hour on-site response target.
Contact
Talk to an application engineer
- sales@example.com
- Phone
- +1 555 0163
- Emergency service
- 24/7
